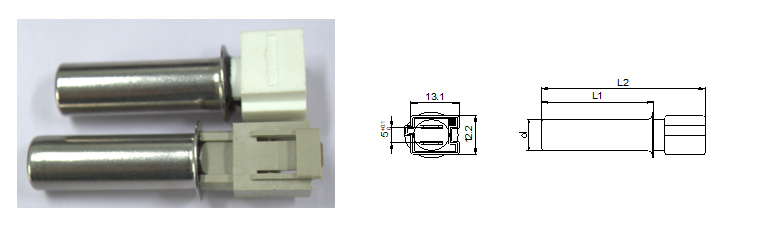

Washing machine temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | ||
---|---|---|---|---|---|
Dimension (尺寸) | 10mm | 30.5mm | 44.5mm | ||
產品性能 | 1、耐壓:AC1000V~AC2000V,3Sec | Product Performance | 1.Withstand voltage :AC1000V~AC2000V,3Sec | ||
2、絕緣:DC500V Min 100MΩ,3Sec | 2.Insulation:DC500V Min 100MΩ,3Sec | ||||
3、使用溫度范圍: -40℃~125℃ | 3.Operating temperature range:-40℃~125℃ | ||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
產品用途 | 適用于洗衣機溫控模塊 | Product Usage | Suitable for washing machine temperature control module |
Solar temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | L3 | |||
---|---|---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||||
-30℃~125℃ | -30℃~125℃ | ||||||
-30℃~150℃ | -30℃~150℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于太陽能溫控模塊 | Product Usage | apply to solar temperature control module |
Water heater temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | ||
---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||
-30℃~125℃ | -30℃~125℃ | ||||
-30℃~150℃ | -30℃~150℃ | ||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
產品用途 | 適用于熱水器溫控模塊 | Product Usage | apply to water heater temperature control module |
Dishwasher temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | D | L1 | L2 | L3 |
---|---|---|---|---|---|
Dimension (尺寸) | 3.9mm | 6.8mm | 10mm | 23mm | ≥50mm |
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||
-30℃~125℃ | -30℃~125℃ | ||||
-30℃~150℃ | -30℃~150℃ | ||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
產品用途 | 適用于洗碗機溫控模塊 | Product Usage | apply to dishwasher temperature control module |
Coffee machine temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | L3 | |||
---|---|---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||||
-30℃~125℃ | -30℃~125℃ | ||||||
-30℃~150℃ | -30℃~150℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于咖啡機溫控模塊 | Product Usage | apply to coffee machine temperature control module |
Kettle temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | D | L1 | L2 | L3 |
---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||
-30℃~125℃ | -30℃~125℃ | ||||
-30℃~150℃ | -30℃~150℃ | ||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
產品用途 | 適用于電水壺溫控模塊 | Product Usage | apply to electric kettle temperature control module |

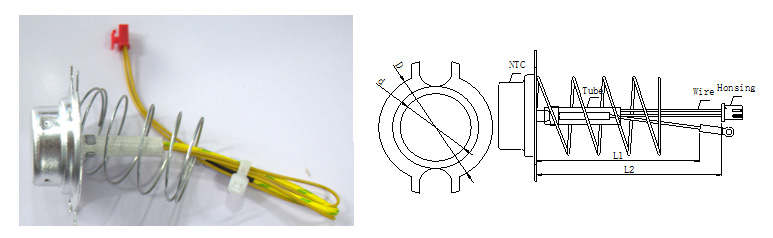

Rice cooker temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | D | L1 | L2 | |||
---|---|---|---|---|---|---|---|
Dimension (尺寸) | 28.0mm | 45.0mm | ≥50mm | ||||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~150℃ | 4.Operating temperature range:-30℃~150℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于電飯鍋溫控模塊 | Product Usage | apply to rice cooker temperature control module |
Induction Cooker Temperature Sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | D | L1 | L2 | |||
---|---|---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||||
-30℃~125℃ | -30℃~125℃ | ||||||
-30℃~150℃ | -30℃~150℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于電磁爐溫控模塊 | Product Usage | apply to induction cooker temperature control module |
Milk heater temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | L3 | |||
---|---|---|---|---|---|---|---|
Dimension (尺寸) | 5.0mm | 33.0mm | 16.0mm | ≥50mm | |||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于暖奶器溫控模塊 | Product Usage | apply to milk heater temperature control module |
Oven temperature sensor
產品性能簡述
Description of Product Performance
代碼 | d | D | L1 | L2 | |||
---|---|---|---|---|---|---|---|
尺寸 | 客戶自定義 Customized | ≥50mm | |||||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||||
-30℃~125℃ | -30℃~125℃ | ||||||
-30℃~150℃ | -30℃~150℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于烤箱溫控模塊 | Product Usage | apply to oven temperature control module |
Electric heater temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | ||
---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||
2、絕緣:DC500V Min 100MΩ,3Sec | 2.Insulation:DC500V Min 100MΩ,3Sec | ||||
3、使用溫度范圍: -30℃~105℃ | 3.Operating temperature range:-30℃~105℃ | ||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
產品用途 | 適用于電暖器溫控模塊 | Product Usage | apply to electric heater temperature control module |
Floor heating temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | L3 | |||
---|---|---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||||
-30℃~125℃ | -30℃~125℃ | ||||||
-30℃~150℃ | -30℃~150℃ | ||||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||||
產品用途 | 適用于地暖溫控模塊 | Product Usage | apply to floor heating temperature control module |
Boiler temperature sensor
產品性能簡述
Description of Product Performance
Code(代碼) | d | L1 | L2 | ||
---|---|---|---|---|---|
Dimension (尺寸) | 客戶自定義 Customized | ≥50mm | |||
產品性能 | 1、線材規格:依客戶需求 | Product Performance | 1.Wire specification:By Customer's Requirements. | ||
2、耐壓:AC1000V~AC2000V,3Sec | 2.Withstand voltage :AC1000V~AC2000V,3Sec | ||||
3、絕緣:DC500V Min 100MΩ,3Sec | 3.Insulation:DC500V Min 100MΩ,3Sec | ||||
4、使用溫度范圍: -30℃~105℃ | 4.Operating temperature range:-30℃~105℃ | ||||
-30℃~125℃ | -30℃~125℃ | ||||
-30℃~150℃ | -30℃~150℃ | ||||
產品特點 | 1、采用高精度、高穩定性元件封裝,測量溫差小,溫度更準確. | Features | 1.Using high-precision, high-stability component package, small temperature difference and more accurate temperature | ||
2、產品特殊防水、防潮處理,潮濕環境工作穩定 | 2.The product has special waterproof and moisture-proof treatment, and it works stably in humid environment. | ||||
3、產品安裝方便、抗寒、耐熱性能優良可長期負荷工作 | 3.Product installation is convenient, cold resistance, excellent heat resistance, long-term load work | ||||
產品用途 | 適用于鍋爐溫控模塊 | Product Usage | apply to boiler temperature control module |
